202HD
$975.00
/

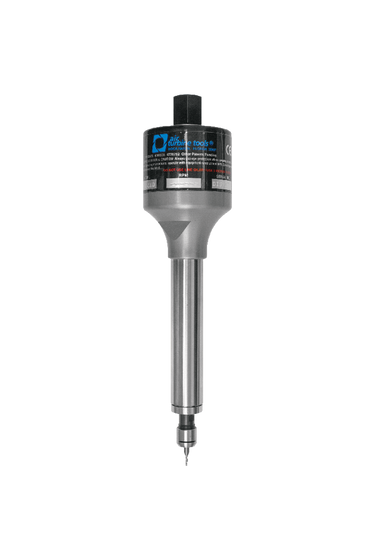

The popular long steel barrel 202HD is a compact powerful fixture mount motor with governed constant speed ranges of 30,000, 40,000, 50,000 and 65,000 RPM.
Drill rubber, plastic or mill faster and cleaner. Collet capacities of ER 8 1/8 (3 mm) with optional collets for smaller and metric applications available.
The 202HD has the advantage of a stainless steel barrel for rigid fixture mounting in applications such as plastic drilling and robotic metal finishing. Oil free operation eliminates part contamination.
This order will be ready to ship in approximately 5-7 business days.
Air Turbine Motors Inc.SKU: 32800
Included Equipment
- 202HD Motor Mount
- ER8 Collet System (1/8" or 3 mm)
- Collet Wrenches
- Rear Exhaust
- 1/4" NPT Air Supply Fitting
Standard Equipment
ER8 collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| 202HD Specifications | ||||
|---|---|---|---|---|
| Speed | 30ˌ000 RPM | 40ˌ000 RPM | 50ˌ000 RPM | 65ˌ000 RPM |
| Power | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) | 0.55 HP (0.41 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | |||
| Air Consumption Idle | 10 CFM (4.72 L/s) | 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| Air Consumption Working Flow |
11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
|||
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |||
| Sound Level | Less Than 78 dBA | |||
| Max Shank Capacity | ER8 - 1/8" (3 mm) | |||
