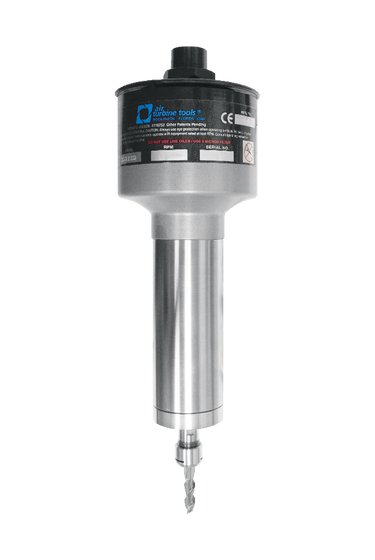

450XHD
$2,200.00
/
The powerful double front and double rear ceramic bearings of the 450XHD assure durability in 24 hour operations.
The sealed front-end prevents wet or dust contamination from getting inside the motor. This patented double turbine motor operates at governed speeds of 25,000, 30,000 or 40,000 RPM with power to 1.4 HP/ 1.04 kW.
Ideal for routing composites, plastics or wood and deburring, finishing or drilling metal at constant high speed.
The rigid Ø 41 mm O.D. steel barrel is easily fixtured for automation or combined with an end effector.
This order will be ready to ship in approximately 5-7 business days.
Air Turbine Motors Inc.SKU: 34456
Included Equipment
- 450XHD Motor Mount
- ER11 Collet System (1/4" or 6 mm)
- Collet Wrenches
- 3/8 in NPT Air Supply Fitting
Standard Equipment
ER11 collet system. 1/4 in or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| 450XHD Specifications | |||
|---|---|---|---|
| Speed | 25ˌ000 RPM | 30ˌ000 RPM | 40ˌ000 RPM |
| Power | 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
| Air Consumption Idle | 14 CFM (6.61 L/s) | 20 CFM (9.44 L/s) | 23 CFM (10.85 L/s) |
| Air Consumption Working Flow |
19 CFM - 40 CFM (8.97 L/s - 18.89 L/s) |
||
| Air Hoses and Fittings Minimum Size | 10 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 - 1/4" (6 mm) | ||
