740XP
740XP

740XP

$3,500.00

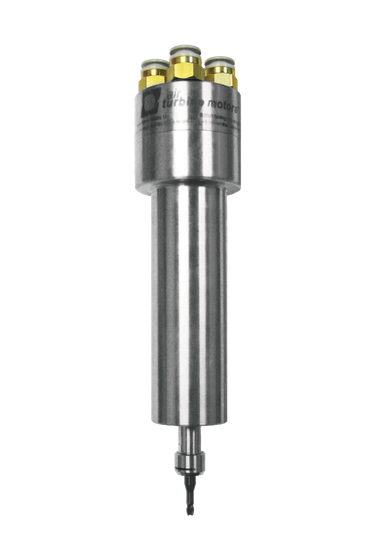

The patented double Turbine 740XP generates 0.78 HP and up to 50,000 RPM! The 740XP keeps high speed under load.

This low vibration motor with few parts, no gears, vanes, or brushes to burn up. Durable ceramic bearings accelerate your production and cut your repair costs and downtime. Ideal for lathes, swiss automatics, robotics and finishing. Specify angular bearings for drilling.

Mountable area of Ø 40 mm OD by 82 mm. Completely sealed with hose exhausts.

This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Speed
Air Turbine Motors Inc.SKU: 70052
Manufacturer's User Notes and Installation Guide
Download Printable Specifications Sheet

Included Equipment

  • 740XP Sealed Motor
  • ER11 UP Collet System (1/4" or 6 mm)
  • Collet Wrenches
  • High Flow Filter / Regulator / Extractor with 1/2 in NPT
  • Air Hose
  • Fittings
  • Carrying Case

Standard Equipment

ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
740XP Specifications
Speed 30ˌ000 RPM 40ˌ000 RPM 50ˌ000 RPM
Power 0.72 HP (0.54 kW) 0.74 HP (0.55 kW) 0.76 HP (0.57 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 16 CFM (7.55 L/s) 20 CFM (9.44 L/s)
Air Consumption Working Flow 17 CFM - 45 CFM
(8.02 L/s - 21.2 L/s)
Air Hoses and Fittings Minimum Size 8 mm internal diameter
Sound Level Less Than 78 dBA
Max Shank Capacity ER11 UP - 1/4" (6 mm)
