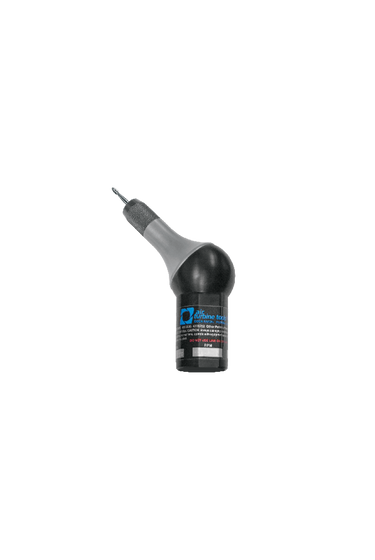

0145SSV
For a finger or palm held tool the 0145SSV allows the user exceptionally fine control for proximity work. This well-balanced, low vibration 0145SSV tool is ideal. For polishing at 40,000 RPM or marking or deburring at 65,000 RPM, this tool is comfortable and exact.
The motor is in the head. There are no gears. Precise and with low vibration. No maintenance or lubrication - ever.
Included Equipment
- 0145SSV Hand Tool
- Collet System (1/8" or 3 mm)
- Collet Wrenches
- Rear Exhaust
- 5’ Air Supply Assembly with Slide Valve
- 1/4" NPT Air Supply Fitting
Standard Equipment
| 0145SSV Specifications | |||
|---|---|---|---|
| Speed | 40ˌ000 RPM | 50ˌ000 RPM | 65ˌ000 RPM |
| Power | 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
| Air Consumption Idle | 3.2 CFM (1.51 L/s) | 4 CFM (1.89 L/s) | |
| Air Consumption Working Flow |
4.7 CFM - 7 CFM (2.22 L/s - 3.3 L/s) |
||
| Air Hoses and Fittings Minimum Size | 3/16" internal diameter | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/8" (3 mm) | ||
0145SSV Best Carbide Mini Bur Kit Combo Case
Everything to get started in a single package! Put the 65,000 RPM 0145SSV in your fingers or palm and experience exceptionally fine control necessary for close proximity work. Effective for precision work, marking, or deburring. The patented 45° design conforms to the natural position of your hand for hand-eye coordination.
- Feather-light at 6 oz (0.17 kg), 0.2 HP.
- No gears, vanes, or brushes to vibrate or heat up.
- Direct drive reliability with only 2 moving parts.
- Low vibration reduces stress and injury risk.
- No oil mist sprays, just connect 90 psi/6.2 bar clean air.
Best Carbide mini burs deliver high-speed cutting precision, stock removal, and finishing. Highly innovative and optimized tool geometry for a wide range of materials and applications.
