201DM
$625.00
/

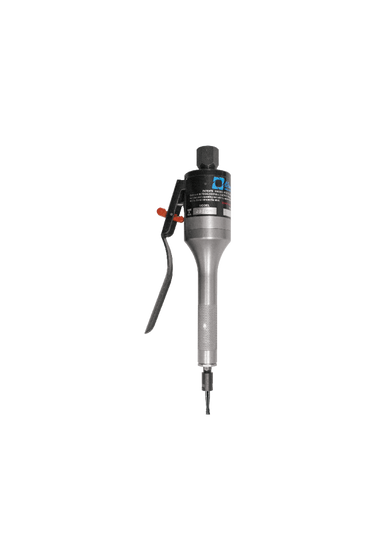

With an automatic trigger switch, the 201DM pencil style precision tool is an incredible combination of light weight and high power. Designed with a slim shaft, allowing the closest possible access in hard-to-reach areas while giving great precision with low vibration.
The constant speed options are 40,000, 50,000 or 65,000 RPM. There are multiple optional collets for smaller and metric applications.
Light and durable, the 201DM delivers exceptionally high torque. Ideal for fast, accurate close-proximity work - from deburring, mold making and engraving at constant 65,000 RPM or polishing at 40,000 RPM. Almost silent while being exceptionally compact and comfortable.
This order will be ready to ship in approximately 5-7 business days.
Air Turbine Tools Inc.SKU: 32142
Included Equipment
- 201DM Hand Tool
- Collet System (1/8" or 3 mm)
- Collet Wrenches
- Rear Exhaust
- 1/4" NPT Air Supply Fitting
- Trigger Switch
Standard Equipment
1/8” or 3 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| 201DM Specifications | ||||
|---|---|---|---|---|
| Speed | 40ˌ000 RPM | 50ˌ000 RPM | 65ˌ000 RPM | 90ˌ000 RPM |
| Power | 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | ||
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | |||
| Air Consumption Idle | 3.5 CFM (1.65 L/s) | 4 CFM (1.89 L/s) | 5 CFM (2.36 L/s) | |
| Air Consumption Working Flow |
4.8 CFM - 7 CFM (2.27 L/s - 3.3 L/s) |
|||
| Air Hoses and Fittings Minimum Size | 3/16" internal diameter | |||
| Sound Level | Less Than 67 dBA | |||
| Max Shank Capacity | 1/8" (3 mm) | |||
