201SV

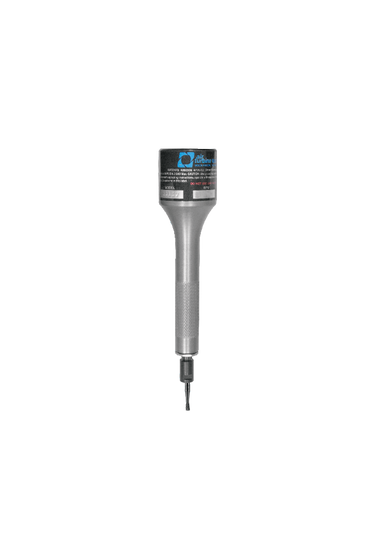

The 201SV pencil style precision tools are an incredible combination of light weight and high power while featuring a slide valve.
Designed with a slim shaft allows the closest possible access in hard-to-reach areas while giving great precision with low vibration. The constant speed options are 40,000, 50,000, 65,000 or 90,000 RPM. With multiple optional collets for smaller and metric applications.
Light and durable, the 201SV delivers exceptionally high torque. Ideal for fast, accurate close-proximity work - from deburring, mold making and engraving at a constant 65,000 RPM or polishing at a constant 40,000 RPM. Almost silent, exceptionally compact and comfortable.
Included Equipment
- 201SV Hand Tool
- Collet System (1/8" or 3 mm)
- Collet Wrenches
- Rear Exhaust
- 5’ Air Supply Assembly with Slide Valve
- 1/4" NPT Air Supply Fitting
Standard Equipment
| 201SV Specifications | ||||
|---|---|---|---|---|
| Speed | 40ˌ000 RPM | 50ˌ000 RPM | 65ˌ000 RPM | 90ˌ000 RPM |
| Power | 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | ||
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | |||
| Air Consumption Idle | 3.5 CFM (1.65 L/s) | 4 CFM (1.89 L/s) | 5 CFM (2.36 L/s) | |
| Air Consumption Working Flow |
4.8 CFM - 7 CFM (2.27 L/s - 3.3 L/s) |
|||
| Air Hoses and Fittings Minimum Size | 3/16" internal diameter | |||
| Sound Level | Less Than 67 dBA | |||
| Max Shank Capacity | 1/8" (3 mm) | |||
201SV Best Carbide Mini Bur Kit Combo Case
Only a light hand guiding the 65,000 RPM 201SV is needed to get our signature benefits-improved precision, faster-cutting action and finer finished surface quality. Ultra-low vibration and light-weight prevent fatigue and hand-arm injury. The tool is also quiet, at <67 dBA, protecting your hearing.
- Feather-light at 6 oz (0.17 kg) but powerful at 0.2 HP.
- No gears, vanes, or brushes to vibrate or heat up.
- Direct drive reliability – no maintenance.
- Low vibration reduces injury risk.
- No oil mist sprays. Just connect 90 psi air.
Best Carbide mini burs deliver high speed cutting precision, stock removal, and finishing. Highly innovative and optimized tool geometry for a wide range of materials and applications.
