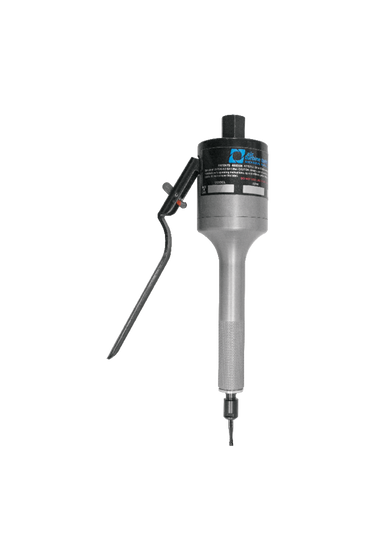

202DM
The popular 202DM has a larger turbine and bearing size with the same slim light pencil design as the 201DM.
Note: Power from the bigger diameter turbine is up to 0.55 HP for heavier material removal with heavier duty bearings.
The 202DM is also available at a slower speed of 30,000 RPM for polishing, 40,000 RPM or 50,000 RPM for deburring and 65,000 RPM for metal work. Lightweight yet powerful, suitable for wide applications. The 202DM is equipped with a shut-off valve located on its hose. No maintenance necessary, and there are no vanes to repair or lubricate either.
Vibration is extremely low with vibration acceleration being 1.0 mm/s²; reducing stress and injury risk. The 202DM is a natural progression for the 201DM user who uses the tool continually.
Included Equipment
- 202DM Hand Tool
- Collet System (1/8" or 3 mm)
- Collet Wrenches
- Rear Exhaust
- 1/4" NPT Air Supply Fitting
- Trigger Switch
Standard Equipment
| 202DM Specifications | ||||
|---|---|---|---|---|
| Speed | 30ˌ000 RPM | 40ˌ000 RPM | 50ˌ000 RPM | 65ˌ000 RPM |
| Power | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) | 0.55 HP (0.41 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | |||
| Air Consumption Idle | 10 CFM (4.72 L/s) | 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| Air Consumption Working Flow |
11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
|||
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |||
| Sound Level | Less Than 67 dBA | |||
| Max Shank Capacity | 1/8" (3 mm) | |||
