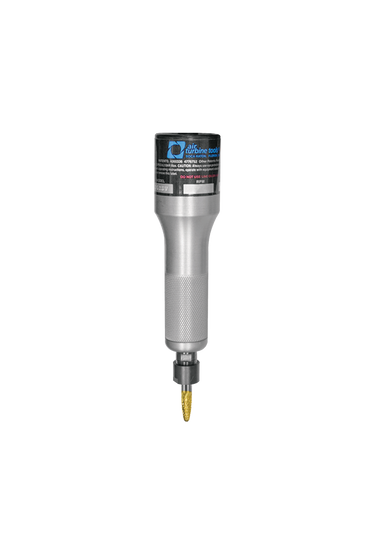

206XSV
In your wrist or fingers it’s so light and comfortable. The 1/4” (6 mm) heavy-duty 206XSV is a powerful tool with ultra low vibration and low noise.
No maintenance and no added lubrication ever. The constant high speed - within 5% of free speed at maximum power - gives you greater accuracy. No vanes to vibrate or repair.
The 206XSV has a low friction free motor with fewer moving parts. No maintenance is a big difference from vane tool technology, with a faster finer finish. At 30,000 RPM you have superb control. At 50,000 RPM you get plenty of power to match and beat other tools. The 206XSV is equipped with a shut-off valve located on its hose.
Included Equipment
- 206XSV Hand Tool
- Collet System (1/4" or 6 mm)
- Collet Wrenches
- Rear Exhaust
- 5’ Air Supply Assembly with Slide Valve
- 1/4" NPT Air Supply Fitting
Standard Equipment
| 206XSV Specifications | ||
|---|---|---|
| Speed | 40ˌ000 RPM | 50ˌ000 RPM |
| Power | 0.3 HP (0.22 kW) | 0.4 HP (0.3 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | |
| Air Consumption Idle | 6 CFM (2.83 L/s) | |
| Air Consumption Working Flow |
7 CFM - 10 CFM (3.3 L/s - 4.72 L/s) |
|
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |
| Sound Level | Less Than 67 dBA | |
| Max Shank Capacity | ER11 UP - 1/4" (6 mm) | |

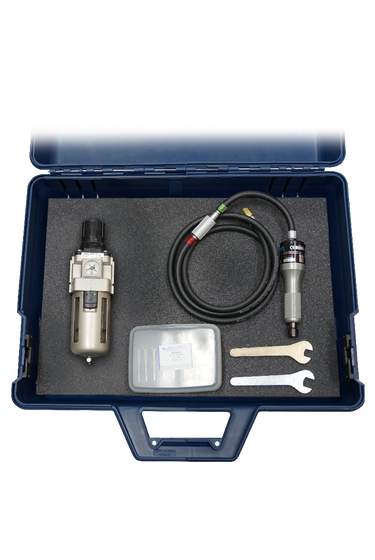

206XSV Best Carbide Bur Kit Combo Case
The powerful 206XSV is quiet, you'll immediately notice its ultra-low vibration magnitude: Just 1.43 m/s2 r.m.s. The governed high speed 206XSV stays at a constant 50,000 RPM under load. No heat or lubrication required. Now you can replace heavy, noisy vibrating tools requiring lubrication and maintenance with the tools of a new generation®. Select between general purpose or nonferrous bur kits from Best Carbide.
- Get direct-drive reliability with no maintenance.
- Eliminate operator stress and working time limits.
- Just connect 90 psi, 6.2 bar dry air.
- No lubrication required.
Best Carbide General Purpose Bur Kit
Best Carbide general purpose burs deliver high speed cutting precision, stock removal, and finishing. Highly innovative and optimized tool geometry for a wide range of materials and applications
Best Carbide Nonferrous Bur Kit
Efficient chip forming and evacuation is critical for optimal cutting performance. Special single flute geometry for improved cutting performance and aggressive stock removal in aluminum and nonferrous materials. Excellent shank and flute concentricity.
