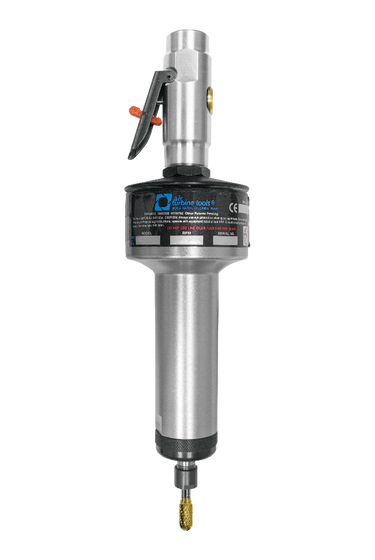

230DM
Almost silent, this light tool shows the power and superiority of the governed turbine. The 230DM incorporates heavy duty bearings and has collet capacities of 1/4" or 6 mm.
For use in heavy-duty applications where hard use is expected for graphite finishing or Kevlar cutting, die polishing, removing welds or foundry work. The vibration level is only 0,9 mm/s² - minimal.
The 230DM will perform heavy material removal tasks reliably, faster, cleaner and with greatly reduced fatigue and injury. Operators love this tool - demonstrate it and see why! The 230DM may be fitted to the shops hose assembly or our air supply assembly with fittings. The 230DM has a deadmans handle for quick, easy shut-off.
Included Equipment
- 230DM Hand Tool
- Collet System (1/4" or 6 mm)
- Collet Wrenches
- Rear Exhaust
- Exhaust Deflector
Standard Equipment
| 230DM Specifications | |||
|---|---|---|---|
| Speed | 25ˌ000 RPM | 30ˌ000 RPM | 40ˌ000 RPM |
| Power | 0.76 HP (0.57 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
| Air Consumption Idle | 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| Air Consumption Working Flow |
15 CFM - 35 CFM (7.08 L/s - 16.52 L/s) |
||
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/4" (6 mm) | ||

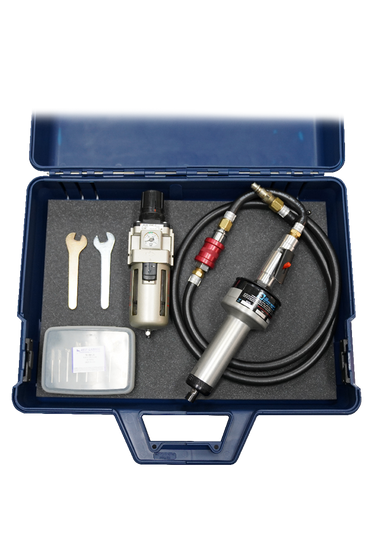

230DM Best Carbide Bur Kit Combo Case
Almost silent, this light tool shows the power and superiority of the governed turbine. The 230DM incorporates heavy-duty bearings and has collet capacities of 1/4" or 6 mm. For use in heavy-duty applications where hard use is expected for graphite finishing or kevlar cutting, die polishing, removing welds or foundry work. Select between general purpose or nonferrous bur kits from Best Carbide.
- Get direct-drive reliability with no maintenance.
- Reduced fatigue, hand-arm stress, and carpal tunnel injury risk.
- Just connect 90 psi, 6.2 bar dry air.
- No lubrication required.
Best Carbide General Purpose Bur Kit
Best Carbide general purpose burs deliver high speed cutting precision, stock removal, and finishing. Highly innovative and optimized tool geometry for a wide range of materials and applications.
Best Carbide Nonferrous Bur Kit
Efficient chip forming and evacuation is critical for optimal cutting performance. Special single flute geometry for improved cutting performance and aggressive stock removal in aluminum and nonferrous materials. Excellent shank and flute concentricity.
