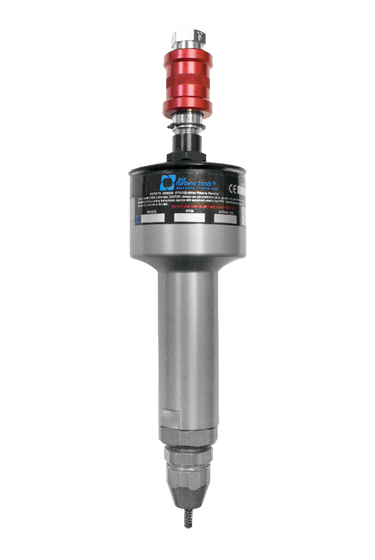

310RXSV
Greater power for fast clean finishing with a quiet no maintenance precision tool. With up to 1.4 HP (1.04 kW), the 310RXSV has collet capacities of 1/4" and 6 mm.
Developed for use in heavy-duty applications from die finishing, slotting to weld removal. Where extra power is needed this tool excels and is exceptionally comfortable. Cut composites, plastics, wood and fiberglass cleaner and faster with low stress. Serious power to rout or drill.
The vibration level is only 0,9 mm/s² - minimal. The 310RXSV also incorporates heavy-duty bearings within a larger, thick housing. This tool may be fitted to the shops hose assembly or our air supply assembly with fittings. The 310RXSV is equipped with a hose shut-off valve conveniently located at the top of the tool.
Included Equipment
- 310RXSV Hand Tool
- Collet System (1/4" or 6 mm)
- Collet Wrenches
- Rear Exhaust
- Slide Valve
Standard Equipment
| 310RXSV Specifications | |||
|---|---|---|---|
| Speed | 25ˌ000 RPM | 30ˌ000 RPM | 40ˌ000 RPM |
| Power | 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
| Air Consumption Idle | 16 CFM (7.55 L/s) | 20 CFM (9.44 L/s) | 30 CFM (14.16 L/s) |
| Air Consumption Working Flow |
19 CFM - 40 CFM (8.97 L/s - 18.89 L/s) |
||
| Air Hoses and Fittings Minimum Size | 10 mm internal diameter | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/4" (6 mm) | ||
