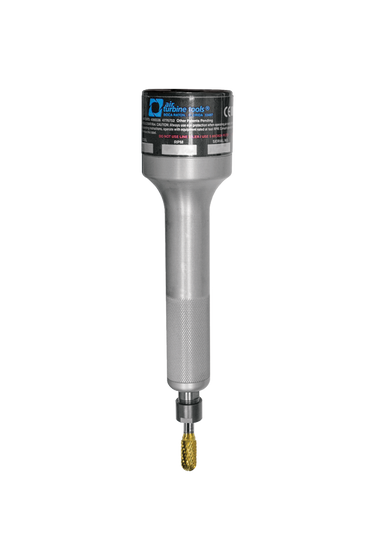

525SV

$595.00

Finishing or trimming metal? Deburring aluminum or steel?

The light, powerful and comfortable 525SV pencil style tools have speed ranges of 30,000 and 40,000 RPM, with collet capacities of 1/4" or 6 mm.

The slim barrel styling provides easy access for hard-to-reach areas. Optional collets are available for varied applications. The vibration level is 1,1 mm/s² and noise level under 67 dBa. These features dramatically reduce operator fatigue and risk of injury.

The 525SV may be fitted to the shops hose assembly or our air supply assembly with fittings. The 525SV is equipped with a hose shut-off valve conveniently located at the top of the tool.

This order will be ready to ship in approximately 5-7 business days.

Product variants

Air Turbine Tools Inc.SKU: 32530

Included Equipment

525SV Hand Tool
Collet System (1/4" or 6 mm)
Collet Wrenches
Rear Exhaust

Exhaust Deflector
5’ Air Supply Assembly with Slide Valve
1/4" NPT Air Supply Fitting

Standard Equipment

1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.

525SV Specifications
Speed	30ˌ000 RPM	40ˌ000 RPM
Power	0.4 HP (0.3 kW)	0.45 HP (0.34 kW)
Inlet Air Pressure	90 psi (6.2 bar) clean dry air
Air Consumption Idle	12 CFM (5.66 L/s)	16 CFM (7.55 L/s)
Air Consumption Working Flow	12 CFM - 20 CFM (3.3 L/s - 4.27 L/s)
Air Hoses and Fittings Minimum Size	6 mm internal diameter
Sound Level	Less Than 67 dBA
Max Shank Capacity	1/4" (6 mm)

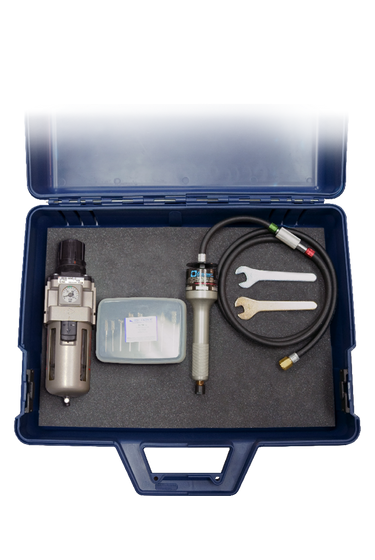

525SV Best Carbide Bur Kit Combo Case

$1,440.00

The 525SV straight tool has revolutionary comfort, superior surface quality, and maintains high speed while in the cut. This tool has 0.45 HP for deburring, part cleaning, deflashing, or weld removal.

Constant governed high speed does the cutting, so the operator does not need to use pressure, eliminating stress and CTS injury risk. Select between general purpose or nonferrous bur kits from Best Carbide.

No oil mist sprays, just connect 90 psi dry air.
Direct drive reliability, no maintenance.
Light-weight, low vibration, no heat.

Best Carbide General Purpose Bur Kit

Best Carbide general purpose burs deliver high speed cutting precision, stock removal, and finishing. Highly innovative and optimized tool geometry for a wide range of materials and applications.

Best Carbide Nonferrous Bur Kit

Efficient chip forming and evacuation is critical for optimal cutting performance. Special single flute geometry for improved cutting performance and aggressive stock removal in aluminum and nonferrous materials. Excellent shank and flute concentricity.
