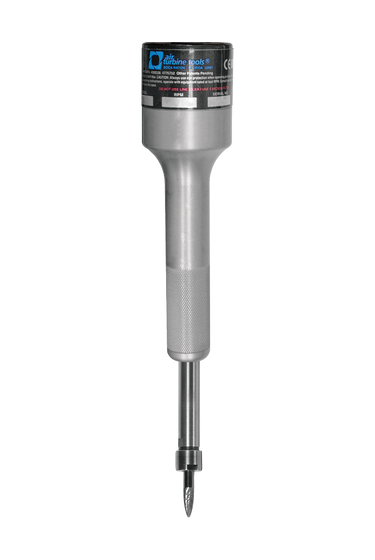

525XSVE

$850.00

Reach deep cavities! The 525XSVE delivers double turbine power combined with lightweight, low vibration, low noise for operator comfort. The 525XSVE also provides greater accuracy and a finer high quality finish.

The constant high speed of 30,000 RPM that the 525XSVE operates at enables you to work on hard-to-reach applications for fast removal or finishing – comfortably with a light touch directing the tool. At up to 0.8 HP (0.6 kW) high speed cutting action on your work piece is assured. Patented automatic brake option stops this tool in seconds.

This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Brake
Air Turbine Tools Inc.SKU: 42560
Download Printable Specifications Sheet

Included Equipment

  • 525XSVE Hand Tool
  • Collet System (1/4" or 6 mm)
  • Collet Wrenches
  • Rear Exhaust
  • Exhaust Deflector
  • 5’ Air Supply Assembly with Slide Valve
  • 3/8 in NPT Air Supply Fitting

Standard Equipment

1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
525XSVE Specifications
Speed 30ˌ000 RPM
Power 0.8 HP (0.6 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 19 CFM (8.97 L/s)
Air Consumption Working Flow 22 CFM - 30 CFM
(10.38 L/s - 14.16 L/s)
Air Hoses and Fittings Minimum Size 8 mm internal diameter
Sound Level Less Than 67 dBA
Max Shank Capacity 1/4" (6 mm)
