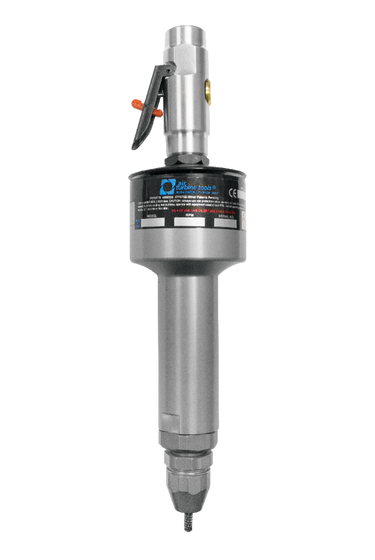

310RXDM
Greater power for fast clean finishing with a quiet no maintenance precision tool. With up to 1.4 HP (1.04 kW), the 310RXDM has collet capacities of 1/4" and 6 mm.
Developed for use in heavy-duty applications from die finishing, slotting to weld removal. Where extra power is needed this tool excels and is exceptionally comfortable.
Cut composites, plastics, wood and fiberglass cleaner and faster with low stress. Serious Power to rout or drill. The vibration level is only 0,9 mm/s² - minimal.
The 310RXDM also incorporates heavy-duty bearings within a larger, thick housing. This tool may be fitted to the shops hose assembly or our air supply assembly with fittings. The 310RXDM has a deadman's handle for quick, easy shut-off.
Included Equipment
- 310RXDM Hand Tool
- Collet System (1/4" or 6 mm)
- Collet Wrenches
- Rear Exhaust
- Trigger Switch
Standard Equipment
| 310RXDM Specifications | |||
|---|---|---|---|
| Speed | 25ˌ000 RPM | 30ˌ000 RPM | 40ˌ000 RPM |
| Power | 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
| Air Consumption Idle | 16 CFM (7.55 L/s) | 20 CFM (9.44 L/s) | 30 CFM (14.16 L/s) |
| Air Consumption Working Flow |
19 CFM - 40 CFM (8.97 L/s - 18.89 L/s) |
||
| Air Hoses and Fittings Minimum Size | 10 mm internal diameter | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/4" (6 mm) | ||

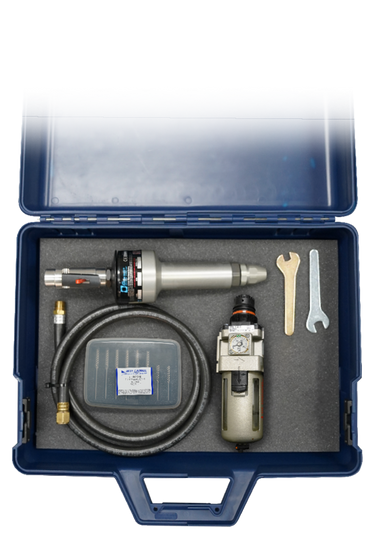

310RXDM Best Carbide Bur Kit Combo Case
The 310RXDM maintains high speed routing at 40,00 RPM with up to 0.88 HP power on demand. Wood, plastics and fiberglass are cut faster and cleaner at the governed 40,000 RPM with less fiber break-out.
- Trigger switch control.
- Direct drive reliability low heat, low weight, no maintenance.
- Low vibration and low weight reduce hand stress injury risk with only a light hand needed.
- Oil-free mechanism results in no oil misting or part contamination, no lubrication.
- Just connect 90 psi.
Best Carbide Fiberglass Composite Router Kit
Best Carbide assures that carbide grade characteristics are engineered to perform at high speed. Efficient chip forming and evacuation are critical for optimal cutting performance. Over 40 years of solid carbide cutting tool expertise.
The diamond pattern geometry is ideal for fiberglass, composite, and non-metallic materials. Excellent shank and flute concentricity.
