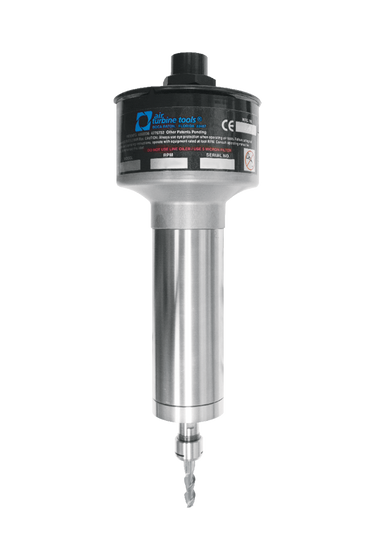

460HD
$2,200.00
/
Quadruple angular ceramic bearings, 50,000 RPM, 0.94 HP (0.7 kW), and a rigid steel barrel for mounting make the new governed 460HD ideal for cutting or finishing harder materials.
Sealed at the front collet for wet environments. The 460s durable, direct drive, low heat and low vibration governed motor is a reliable workhorse with powerful performance 24/7.
A low vibration magnitude of 1.25 m/s² r.m.s, makes the well-balanced 460HD ideal for robotic integrations. Applications include finishing, drilling, milling and routing.
This order will be ready to ship in approximately 5-7 business days.
Air Turbine Motors Inc.SKU: 34470
Included Equipment
- 460HD Motor Mount
- ER11 Collet System (1/4" or 6 mm)
- Collet Wrenches
- 3/8 in NPT Air Supply Fitting
Standard Equipment
ER11 collet system. 1/4 in or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| 460HD Specifications | |
|---|---|
| Speed | 50ˌ000 RPM |
| Power | 0.94 HP (0.7 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air |
| Air Consumption Idle | 20 CFM (9.44 L/s) |
| Air Consumption Working Flow |
20 CFM - 35 CFM (9.44 L/s - 16.52 L/s) |
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter |
| Sound Level | Less Than 78 dBA |
| Max Shank Capacity | ER11 - 1/4" (6 mm) |
