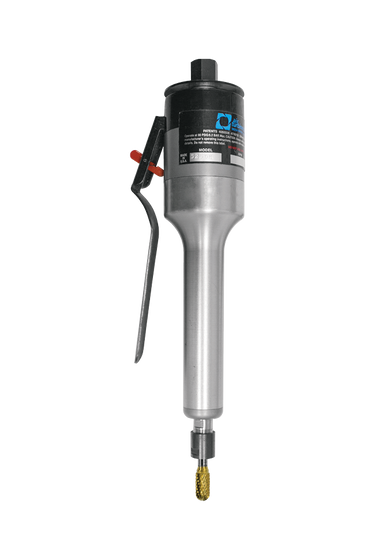

525XDM
525XDM

525XDM

$625.00
Exceptionally powerful and tough!

The 525XDM delivers extra power at lower speeds. Double turbine power combines with lightweight, low vibration, low noise, operator comfort and provides greater accuracy and a finer high speed finish.

The 525XDM weighs under 21 oz (0.6 kg) with power up to 0.9 HP (0.68 kW). The constant high speed 525XDM enables you to work on hard-to-reach applications for fast removal or finishing - comfortably with a light touch directing the tool. Air turbine Tools® oil free mechanism eliminates carcinogenic corrosive oil contamination and lubrication costs.

With fewer moving parts there is no maintenance and repair costs are reduced. The 525XDM may be fitted to the shops hose assembly or our air supply assembly with fittings. The 525XDM has a deadmans handle for quick, easy shut-off.

This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Speed
Brake
Air Turbine Tools Inc.SKU: 42532

Included Equipment

  • 525XDM Hand Tool
  • Collet System (1/4" or 6 mm)
  • Collet Wrenches
  • Rear Exhaust
  • Exhaust Deflector
  • Trigger Switch
  • 1/4" NPT Air Supply Fitting

Standard Equipment

ER11 collet system. 1/4 in or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
525XDM Specifications
Speed 30ˌ000 RPM 40ˌ000 RPM
Power 0.8 HP (0.6 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 19 CFM (8.97 L/s) 20 CFM (9.44 L/s)
Air Consumption Working Flow 22 CFM - 30 CFM
(10.38 L/s - 14.16 L/s)
Air Hoses and Fittings Minimum Size 8 mm internal diameter
Sound Level Less Than 67 dBA
Max Shank Capacity 1/4" (6 mm)
