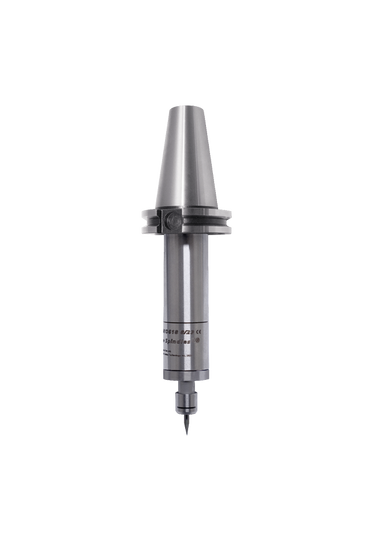

600XCAT40
600XCAT40

600XCAT40

$4,950.00
the tools of a new generation™

The compact double turbine 600X CNC spindle series operates at governed 65,000 RPM or 80,000 RPM.

Air Turbine Spindles® patented governor increases air flow volume to match cutting load maintaining rated high speed in cut. Easily get the required high SFM for small tools and achieve 6-10x faster cycles.

The constant high speed of the 600XCAT40 optimizes your tool performance, preventing breakages on micro tools. Using only 5 cfm / 2.3 liters per second airflow, this tiny spindle minimizes air consumption.

The direct drive has only 2 moving parts - generating no heat and zero thermal effects on accuracy. All you need is a 90 psi (6.2 bar) dry air ran through your machine spindle.

This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Speed
Air Turbine Spindles Inc.SKU: 60020
Manufacturer's User Notes and Installation Guide

Included Equipment

  • 600XCAT40 CNC Spindle
  • Low Flow Filter / Regulator Extractor
  • ER8 UP Collet System (1/8" or 3 mm)
  • Collet Wrenches
  • Air Hose
  • Fittings
  • Plug
  • Coolant Guard
  • Carrying Case

Standard Equipment

ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
600XCAT40 Specifications
Speed 65ˌ000 RPM 80ˌ000 RPM
Power 0.15 HP (0.11 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 3.5 CFM (1.65 L/s)
Air Consumption Working Flow 5 CFM
(2.36 L/s)
Air Hoses and Fittings Minimum Size 4 mm internal diameter
Sound Level Less Than 78 dBA
Max Shank Capacity ER8 UP - 1/8" (3 mm)
