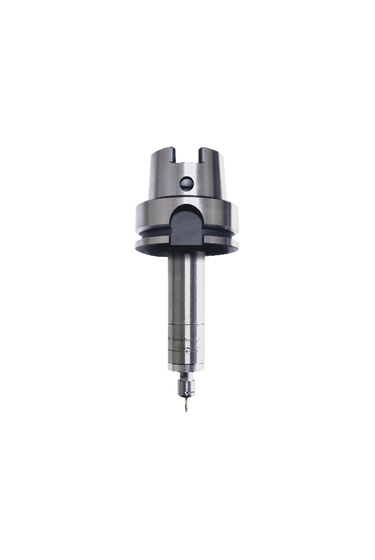

600XHSK-A63
the tools of a new generation™
The compact double turbine 600X CNC spindle series operates at governed 65,000 RPM or 80,000 RPM.
Air Turbine Spindles® patented governor increases air flow volume to match cutting load maintaining rated high speed in cut. Easily get the required high SFM for small tools and achieve 6-10x faster cycles.
The constant high speed of the 600XHSK-A63 optimizes your tool performance, preventing breakages on micro tools. Using only 5 cfm / 2.3 liters per second airflow, this tiny spindle minimizes air consumption.
The direct drive has only 2 moving parts - generating no heat and zero thermal effects on accuracy. All you need is a 90 psi (6.2 bar) dry air ran through your machine spindle.
Automatically Load and Unload
All Air Turbine 600X HSK spindles can tool change automatically if the machine's air supply line has a minimum of 4 mm internal diameter through center air feed.
Included Equipment
Standard Equipment
600XHSK-A63 Specifications | ||
---|---|---|
Speed | 65ˌ000 RPM | 80ˌ000 RPM |
Power | 0.15 HP (0.11 kW) | |
Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | |
Air Consumption Idle | 3.5 CFM (1.65 L/s) | |
Air Consumption Working Flow |
5 CFM (2.36 L/s) |
|
Air Hoses and Fittings Minimum Size | 4 mm internal diameter | |
Sound Level | Less Than 78 dBA | |
Max Shank Capacity | ER8 UP - 1/8" (3 mm) |
