601DIN30
601DIN30

601DIN30

$5,800.00
the tools of a new generation™

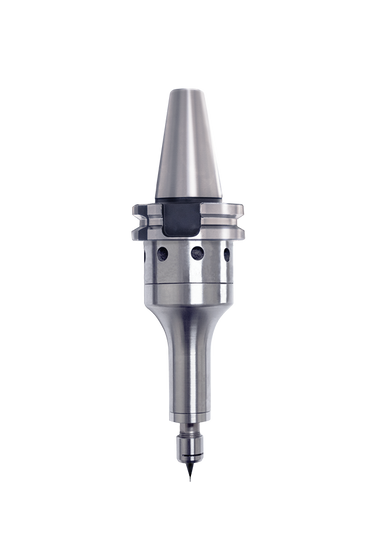

Operate at governed 40,000 RPM to 90,000 RPM, while minimizing air consumption at 5 cfm / 2.3 liters per second airflow. This direct drive has only 2 moving parts which generates no heat, so there are zero thermal effects on accuracy. Get the finish you need with 2 micron ultra precision.

Just connect 90 psi (6.2 bar) dry clean air through your machine spindle to begin operation. Add the 601DIN30 to your CNC magazine for improved micro tool performance and productivity.

The 50 mm extended barrel allows for close work-piece operations or for work on machines with a short z-axis travel.

Automatically Load and Unload

Automatic loading available using through spindle air supply with the patented collar and block TMA assembly, or tool change without the TMA on certain machines that have an air blast line or coolant channel supplying a sufficient air flow volume.

601DIN30 with 90,000 RPM is recommended for only special applications with micro end mills.
This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Speed
Air Turbine Spindles Inc.SKU: 63182
Download Printable Specifications Sheet

Included Equipment

  • 601DIN30 CNC Spindle
  • High Flow Filter / Regulator / Extractor
  • ER8 UP Collet System (1/8" or 3 mm)
  • Collet Wrenches
  • Air Hose
  • Fittings
  • Plug
  • Coolant Guard
  • Carrying Case

Standard Equipment

ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
601DIN30 Specifications
Speed 40ˌ000 RPM 50ˌ000 RPM 65ˌ000 RPM 90ˌ000 RPM
Power 0.15 HP (0.11 kW) 0.2 HP (0.15 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 4.5 CFM (2.1 L/s) 5 CFM (2.36 L/s)
Air Consumption Working Flow 5 CFM - 6 CFM
(2.36 L/s - 2.83 L/s)
Air Hoses and Fittings Minimum Size 4 mm internal diameter
Sound Level Less Than 78 dBA
Max Shank Capacity ER8 UP - 1/8" (3 mm)

Tool Changer Mounting Assembly - 601 & 602 Series

$1,500.00

Automatically load the 601 and 602 series of Air Turbine Spindles® in your CNC machine with the patented wrap-around Tool Changer Mounting Assembly (TMA). The TMA block remains on the CNC spindle for normal tool changes, and does not interfere with the main spindle. This collar system allows CNC tool changers to automatically load/unload your Air Turbine Spindle®.

Drilling of mounting block holes required for universal blocks.
Machine Block
Taper
Certain newer Haas machines have the mounting screw holes further apart than other Haas machines. If purchasing a Haas machine block, please measure the width between the screw holes and determine if the space is more than two inches or fewer than two inches to ensure the block is compatible with your machine.
The Tool Changer Mounting Assembly is a factory installation

When purchasing a TMA for an already-owned spindle you must send your current spindle to us for the TMA to be installed.
