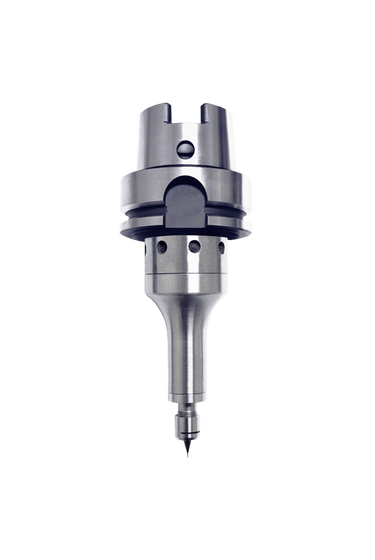

601HSK-A63

$5,800.00

the tools of a new generation™

Operate at governed 40,000 RPM to 90,000 RPM, while minimizing air consumption at 5 cfm / 2.3 liters per second airflow. This direct drive has only 2 moving parts which generates no heat, so there are zero thermal effects on accuracy. Get the finish you need with 2 micron ultra precision.

Just connect 90 psi (6.2 bar) dry clean air through your machine spindle to begin operation. Add the 601HSK-A63 to your CNC magazine for improved micro tool performance and productivity.

The 50 mm extended barrel allows for close work-piece operations or for work on machines with a short z-axis travel.

Automatically Load and Unload

All Air Turbine 601 HSK spindles can tool change automatically if the machine's air supply line has a minimum of 4 mm internal diameter through center air feed.

601HSK-A63 with 90,000 RPM is recommended for only special applications with micro end mills.

This order will be ready to ship in approximately 5-7 business days.

Product variants

Air Turbine Spindles Inc.SKU: 62153

Manufacturer's User Notes and Installation Guide

Download Printable Specifications Sheet

Included Equipment

601HSK-A63 CNC Spindle
High Flow Filter / Regulator / Extractor
ER8 UP Collet System (1/8" or 3 mm)
Collet Wrenches
Air Hose
Fittings

Plug
Coolant Guard
Coolant Tube
Coolant Shield
Carrying Case

Standard Equipment

ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.

601HSK-A63 Specifications
Speed	40ˌ000 RPM	50ˌ000 RPM	65ˌ000 RPM	90ˌ000 RPM
Power	0.15 HP (0.11 kW)	0.2 HP (0.15 kW)
Inlet Air Pressure	90 psi (6.2 bar) clean dry air
Air Consumption Idle	4.5 CFM (2.1 L/s)			5 CFM (2.36 L/s)
Air Consumption Working Flow	5 CFM - 6 CFM (2.36 L/s - 2.83 L/s)
Air Hoses and Fittings Minimum Size	4 mm internal diameter
Sound Level	Less Than 78 dBA
Max Shank Capacity	ER8 UP - 1/8" (3 mm)
