602DIN30

$5,800.00

the tools of a new generation™

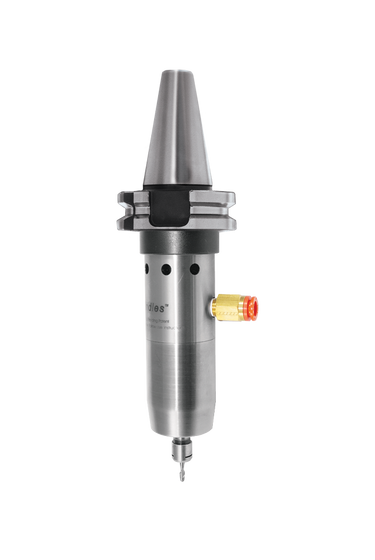

The compact 602DIN30 series delivers governed constant high speeds under load. Rated speeds are 40,000, 50,000, 65,000 and 90,000 RPM. Ideal for engraving, marking, slotting, drilling and finishing with small tools the 602 CNC spindle speeds up cycle times -- cutting cost and accelerating production.

Air Turbine Spindles® patented motors maintain high speed while cutting with no gears, vanes or brushes to burn up. Using dry clean, oil free, 90 psi (6.2 bar) compressed air the 602DIN30 requires no lubrication and emits no oil mist. With fewer moving parts and low friction and utilizing ceramic bearings the 602DIN30 is a precise and reliable favorite with no duty cycle.

Automatically Load and Unload

Automatic loading available using through spindle air supply with the patented collar and block TMA assembly, or tool change without the TMA on certain machines that have an air blast line or coolant channel supplying a sufficient air flow volume.

602DIN30 with 90,000 RPM is recommended for only special applications with micro end mills.

This order will be ready to ship in approximately 5-7 business days.

Product variants

Air Turbine Spindles Inc.SKU: 64756

Manufacturer's User Notes and Installation Guide

Included Equipment

602DIN30 CNC Spindle
High Flow Filter / Regulator / Extractor
ER8 UP Collet System (1/8" or 3 mm)
Collet Wrenches
Air Hose

Fittings
Plug
Coolant Guard
Carrying Case

Standard Equipment

ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.

602DIN30 Specifications
Speed	40ˌ000 RPM	50ˌ000 RPM	65ˌ000 RPM	90ˌ000 RPM
Power	0.15 HP (0.11 kW)	0.2 HP (0.15 kW)
Inlet Air Pressure	90 psi (6.2 bar) clean dry air
Air Consumption Idle	4.5 CFM (2.1 L/s)			5 CFM (2.36 L/s)
Air Consumption Working Flow	5 CFM - 6 CFM (2.36 L/s - 2.83 L/s)
Air Hoses and Fittings Minimum Size	4 mm internal diameter
Sound Level	Less Than 78 dBA
Max Shank Capacity	ER8 UP - 1/8" (3 mm)

Tool Changer Mounting Assembly - 601 & 602 Series

$1,500.00

Automatically load the 601 and 602 series of Air Turbine Spindles® in your CNC machine with the patented wrap-around Tool Changer Mounting Assembly (TMA). The TMA block remains on the CNC spindle for normal tool changes, and does not interfere with the main spindle. This collar system allows CNC tool changers to automatically load/unload your Air Turbine Spindle®.

Drilling of mounting block holes required for universal blocks.

Product variants

Certain newer Haas machines have the mounting screw holes further apart than other Haas machines. If purchasing a Haas machine block, please measure the width between the screw holes and determine if the space is more than two inches or fewer than two inches to ensure the block is compatible with your machine.

The Tool Changer Mounting Assembly is a factory installation

When purchasing a TMA for an already-owned spindle you must send your current spindle to us for the TMA to be installed.
