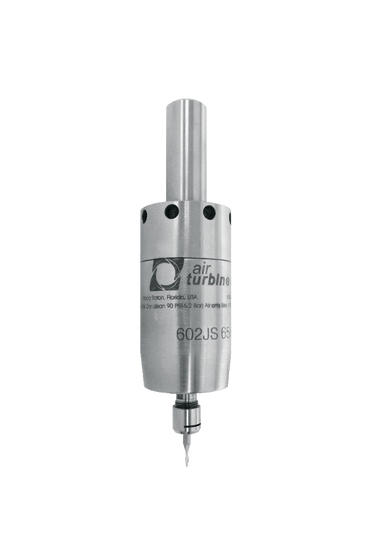

602JS
the tools of a new generation™
The compact 602JS series delivers governed constant high speeds under load. Rated speeds are 40,000, 50,000, 65,000 and 90,000 RPM. Ideal for engraving, marking, slotting, drilling and finishing with small tools the 602 speeds up cycle times -- cutting cost and accelerating production.
Air Turbine Spindles® patented governor maintains high speed while cutting with no gears, vanes or brushes to burn up. Using dry clean, oil free, 90 psi (6.2 bar) compressed air the 602 series requires no lubrication and emits no oil mist.
With fewer moving parts and low friction and utilizing ceramic bearings the 602JS series is a precise and reliable favorite with no duty cycle. 3/4" or 20 mm JS units combine with ER32 or other tool holders for infinite compatibility.
Included Equipment
Standard Equipment
| 602JS Specifications | ||||
|---|---|---|---|---|
| Speed | 40ˌ000 RPM | 50ˌ000 RPM | 65ˌ000 RPM | 90ˌ000 RPM |
| Power | 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | ||
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | |||
| Air Consumption Idle | 4.5 CFM (2.1 L/s) | 5 CFM (2.36 L/s) | ||
| Air Consumption Working Flow |
5 CFM - 6 CFM (2.36 L/s - 2.83 L/s) |
|||
| Air Hoses and Fittings Minimum Size | 4 mm internal diameter | |||
| Sound Level | Less Than 78 dBA | |||
| Max Shank Capacity | ER8 UP - 1/8" (3 mm) | |||
CNC Spindle Accessories
Shop Now
All Air Turbine Tools® products are made to order, and ship on average within 5-7 business days after your order is received.
