625DT
625DT

625DT

$6,550.00
the tools of a new generation™

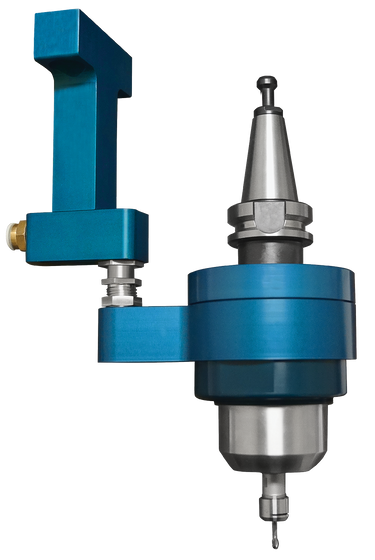

Just fit the patented, 625DT spindle in your Drill-Tap machine magazine for automatic tool changing and increase production.

Install the spindle mounted manifold block and align the nozzle to block connector, which supplies the spindle air to a clean, dry 90 psi (6.2 bar) air supply.

Air Turbine Spindles® air supply adaptor manifold block connects to the machine spindle housing, via the automatic tool change, to supply air at 90 psi (6.2 bar) to the powerful, direct drive turbine motor.

Increase milling and drilling feed rates resulting in higher productivity with no duty cycle for true 24/7 unattended production – 30,000, 40,000, 50,000 or 65,000 RPM.

This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Speed
Machine Block
Air Turbine Spindles Inc.SKU: 64642
Manufacturer's User Notes and Installation Guide

Included Equipment

  • 625DT CNC Spindle
  • TMA Block
  • TMA Collar
  • High Flow Filter / Regulator / Extractor
  • ER8 UP Collet System (1/8" or 3 mm)
  • Collet Wrenches
  • Air Hose
  • Fittings
  • Plug
  • Coolant Guard
  • Carrying Case

Standard Equipment

ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
625DT Specifications
Speed 30ˌ000 RPM 40ˌ000 RPM 50ˌ000 RPM 65ˌ000 RPM
Power 0.4 HP (0.3 kW) 0.45 HP (0.34 kW) 0.5 HP (0.37 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 12 CFM (5.66 L/s) 14 CFM (6.61 L/s) 16 CFM (7.55 L/s)
Air Consumption Working Flow 11 CFM - 20 CFM
(5.19 L/s - 9.44 L/s)
Air Hoses and Fittings Minimum Size 6 mm internal diameter
Sound Level Less Than 78 dBA
Max Shank Capacity ER11 UP - 1/4" (6 mm)
