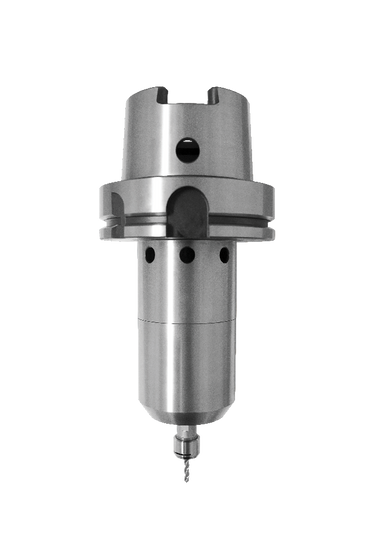

625HSK-A100

$5,800.00

the tools of a new generation™

The versatile and reliable 625HSK-A100 delivers governed constant high speeds under load - 30,000, 40,000, 50,000 and 65,000 RPM.

Ideal for mold making, milling and finishing with small tools up to 1/4" / 6 mm capacity. Get the reliability of direct drive milling with no duty cycle and no thermal expansion. Selectable rear or side air feed.

Automatically Load and Unload

All Air Turbine 625 HSK spindles can tool change automatically if the machine's air supply line has a minimum of 6 mm internal diameter through center air feed.

This order will be ready to ship in approximately 5-7 business days.

Product variants

Air Turbine Spindles Inc.SKU: 65116

Manufacturer's User Notes and Installation Guide

Download Printable Specifications Sheet

Included Equipment

625HSK-A100 CNC Spindle
High Flow Filter / Regulator / Extractor
ER11 UP Collet System (1/4" or 6 mm)
Collet Wrenches
Air Hose
Fittings

Plug
Coolant Guard
Coolant Tube
Coolant Shield
Carrying Case

Standard Equipment

ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.

625HSK-A100 Specifications
Speed	30ˌ000 RPM	40ˌ000 RPM	50ˌ000 RPM	65ˌ000 RPM
Power	0.4 HP (0.3 kW)	0.45 HP (0.34 kW)	0.5 HP (0.37 kW)	0.55 HP (0.41 kW)
Inlet Air Pressure	90 psi (6.2 bar) clean dry air
Air Consumption Idle	12 CFM (5.66 L/s)	14 CFM (6.61 L/s)		16 CFM (7.55 L/s)
Air Consumption Working Flow	11 CFM - 20 CFM (5.19 L/s - 9.44 L/s)
Air Hoses and Fittings Minimum Size	6 mm internal diameter
Sound Level	Less Than 78 dBA
Max Shank Capacity	ER11 UP - 1/4" (6 mm)
