625LDIN30 (100 mm)
the tools of a new generation™

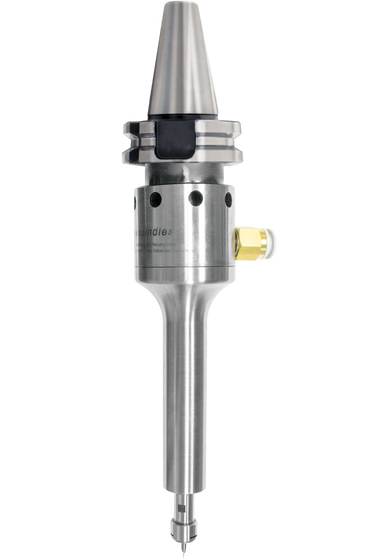

With an ultra-low vibration at just 0.4mm/sec the 625LDIN30 produces superb accuracy and fast results. This 625 series spindle has a 100 mm extended barrel, and can easily reach into deep pockets, fit into machines with a short z-axis travel, and excel at close work piece operations while reaching 0.5 HP (0.37 kW) at speeds of 30,000, 40,000 or 50,000 RPM.
Compact and powerful Air Turbine Spindles® 625 unit delivers patented constant governed high speed operation under load cuts faster and cleaner - speeding up cycle times and achieving major savings. Fewer moving parts means less vibration and less repairs. There are no gears or vanes to lubricate or burn up and the ceramic grease packed bearings are durable. Totally oil free operation eliminates work piece contamination and oil lubrication using 90 psi (6.2 bar) dry clean oil free air.
Automatically Load and Unload
Automatic loading available using through spindle air supply with the patented collar and block TMA assembly, or tool change without the TMA on certain machines that have an air blast line or coolant channel supplying a sufficient air flow volume.
Included Equipment
Standard Equipment
625LDIN30 (100 mm) Specifications | |||
---|---|---|---|
Speed | 30ˌ000 RPM | 40ˌ000 RPM | 50ˌ000 RPM |
Power | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) |
Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
Air Consumption Idle | 12 CFM (5.66 L/s) | 14 CFM (6.61 L/s) | |
Air Consumption Working Flow |
11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
||
Air Hoses and Fittings Minimum Size | 6 mm internal diameter | ||
Sound Level | Less Than 78 dBA | ||
Max Shank Capacity | ER11 UP - 1/4" (6 mm) |
Tool Changer Mounting Assembly - 625 & 625X Series
Automatically load the 625 series of Air Turbine Spindles® in your CNC machine with the patented wrap-around Tool Changer Mounting Assembly (TMA). The TMA block remains on the CNC spindle for normal tool changes, and does not interfere with the main spindle. This collar system allows CNC tool changers to automatically load/unload your Air Turbine Spindle®.
Drilling of mounting block holes required for universal blocks.
The Tool Changer Mounting Assembly is a factory installation
When purchasing a TMA for an already-owned spindle you must send your current spindle to us for the TMA to be installed.
