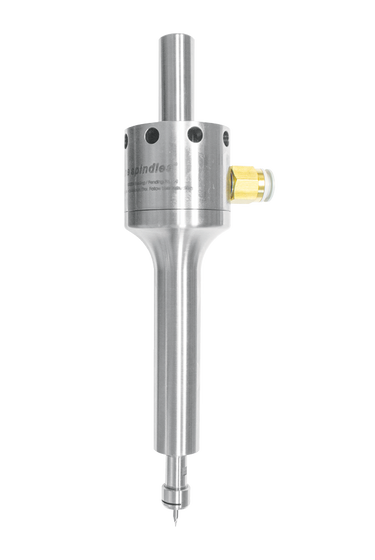

625LJS (100 mm)
the tools of a new generation™
With an ultra-low vibration at just 0.4mm/sec the 625LJS produces superb accuracy and fast results. This 625 series spindle has a 100 mm extended barrel, and can easily reach into deep pockets, fit into machines with a short z-axis travel, and excel at close work piece operations while reaching 0.5 HP (0.37 kW) at speeds of 30,000, 40,000 or 50,000 RPM.
Compact and powerful Air Turbine Spindles® 625 unit delivers patented constant governed high speed operation under load cuts faster and cleaner - speeding up cycle times and achieving major savings. Fewer moving parts means less vibration and less repairs. There are no gears or vanes to lubricate or burn up and the ceramic grease packed bearings are durable. Totally oil free operation eliminates work piece contamination and oil lubrication using 90 psi (6.2 bar) dry clean oil free air.
This JS version is easy to mount with your selection of tool holder configuration and two air inlet options (through shank or side air feed NPT).
Included Equipment
Standard Equipment
625LJS (100 mm) Specifications | |||
---|---|---|---|
Speed | 30ˌ000 RPM | 40ˌ000 RPM | 50ˌ000 RPM |
Power | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) |
Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
Air Consumption Idle | 12 CFM (5.66 L/s) | 14 CFM (6.61 L/s) | |
Air Consumption Working Flow |
11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
||
Air Hoses and Fittings Minimum Size | 6 mm internal diameter | ||
Sound Level | Less Than 78 dBA | ||
Max Shank Capacity | ER11 UP - 1/4" (6 mm) |
