625XDT
625XDT

625XDT

$6,750.00
the tools of a new generation™

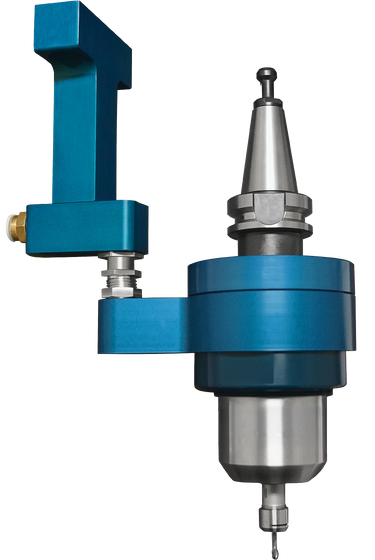

Just fit the patented, double turbine 625XDT Series spindles to your Drill-Tap machine magazine for automatic tool changing and increase production. Air Turbine Spindles® air supply adaptor manifold block connects to the machine spindle housing, via the automatic tool change, to supply air at 90 psi (6.2 bar) to the powerful, direct-drive turbine motor.

Increase milling and drilling feed rates resulting in higher productivity with no duty cycle for true 24/7 unattended production – 30,000, 40,000, or 50,000 RPM up to 0.76 HP (0.57 kW).

This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Speed
Machine Block
Air Turbine Spindles Inc.SKU: 64630
Manufacturer's User Notes and Installation Guide

Included Equipment

  • 625XDT CNC Spindle
  • TMA Block
  • TMA Collar
  • High Flow Filter / Regulator / Extractor
  • ER8 UP Collet System (1/8" or 3 mm)
  • Collet Wrenches
  • Air Hose
  • Fittings
  • Plug
  • Coolant Guard
  • Carrying Case

Standard Equipment

ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
625XDT Specifications
Speed 30ˌ000 RPM 40ˌ000 RPM 50ˌ000 RPM
Power 0.72 HP (0.54 kW) 0.74 HP (0.55 kW) 0.76 HP (0.57 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 16 CFM (7.55 L/s) 20 CFM (9.44 L/s)
Air Consumption Working Flow 22 CFM - 30 CFM
(10.38 L/s - 14.16 L/s)
Air Hoses and Fittings Minimum Size 8 mm internal diameter
Sound Level Less Than 78 dBA
Max Shank Capacity ER11 UP - 1/4" (6 mm)
