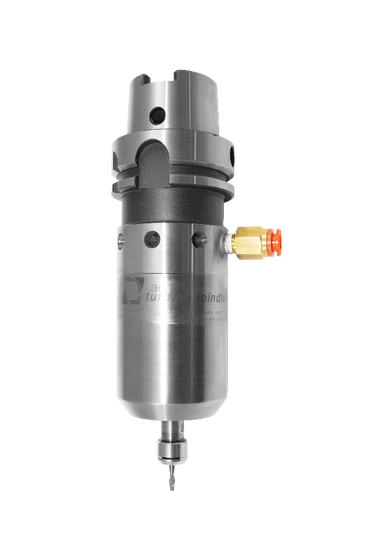

625XHSK-A63
$6,250.00
/
the tools of a new generation™
The patented double turbine 625XHSK-A63 delivers constant high speeds under load - 30,000, 40,000, and 50,000 RPM.
Speed up your cycle times with this compact and powerful spindle. Ideal for contouring, mold-making, milling, finishing and drilling with small tools. Governor control maintains constant high-speed and power under load. Direct drive means low heat, no duty cycle and super reliability. Select rear or side air feed.
Automatically Load and Unload
All Air Turbine 625X HSK spindles can tool change automatically if the machine's air supply line has a minimum of 8 mm internal diameter through center air feed.
This order will be ready to ship in approximately 5-7 business days.
Air Turbine Spindles Inc.SKU: 64014
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| 625XHSK-A63 Specifications | |||
|---|---|---|---|
| Speed | 30ˌ000 RPM | 40ˌ000 RPM | 50ˌ000 RPM |
| Power | 0.72 HP (0.54 kW) | 0.74 HP (0.55 kW) | 0.76 HP (0.57 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
| Air Consumption Idle | 16 CFM (7.55 L/s) | 20 CFM (9.44 L/s) | |
| Air Consumption Working Flow |
22 CFM - 30 CFM (10.38 L/s - 14.16 L/s) |
||
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4" (6 mm) | ||
