625XJS
625XJS

625XJS

$5,500.00
the tools of a new generation™

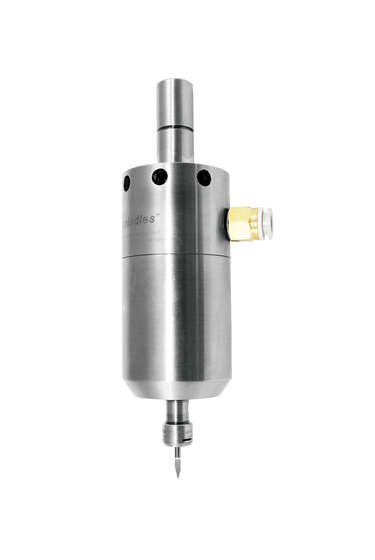

The patented double turbine 625XJS (3/4 / 20 mm straight shank) delivers constant high speeds under load - 30,000, 40,000, and 50,000 RPM.

Speed up your cycle times with this compact and powerful spindle. Ideal for contouring, mold-making, milling, finishing and drilling with small tools. Governor control maintains constant high-speed and power under load.

Direct drive means low heat, no duty cycle and super reliability. Selectable rear or side air feed.

This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Speed
Air Turbine Spindles Inc.SKU: 63026
Download Printable Specifications Sheet

Included Equipment

  • 625XJS CNC Spindle
  • High Flow Filter / Regulator / Extractor
  • ER11 UP Collet System (1/4" or 6 mm)
  • Collet Wrenches
  • Air Hose
  • Fittings
  • Plug
  • Coolant Guard
  • Carrying Case

Standard Equipment

ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
625XJS Specifications
Speed 30ˌ000 RPM 40ˌ000 RPM 50ˌ000 RPM
Power 0.72 HP (0.54 kW) 0.74 HP (0.55 kW) 0.76 HP (0.57 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 16 CFM (7.55 L/s) 20 CFM (9.44 L/s)
Air Consumption Working Flow 22 CFM - 30 CFM
(10.38 L/s - 14.16 L/s)
Air Hoses and Fittings Minimum Size 8 mm internal diameter
Sound Level Less Than 78 dBA
Max Shank Capacity ER11 UP - 1/4" (6 mm)
