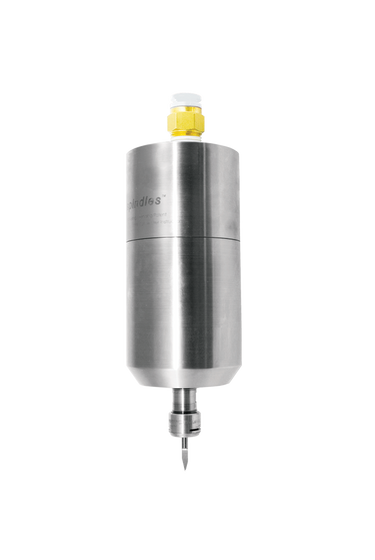

625XNS
625XNS

625XNS

$5,500.00
the tools of a new generation™

The patented double turbine 625XNS (no shank) delivers constant high speeds under load - 30,000, 40,000, and 50,000 RPM. The 625XNS features no shank, and air feed from rear position. Drop-in the 57 mm fixture and be ready to mill, finish or drill with small tools up to 1/4 / 6 mm capacity. Front ends sealed for wet environments (rear exhaust not sealed).

Speed up your cycle times with this compact and powerful spindle. Ideal for contouring, moldmaking, milling, finishing and drilling with small tools. Governor control maintains constant high-speed and power under load. Direct drive means low heat, no duty cycle and super reliability.

This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Speed
Air Turbine Spindles Inc.SKU: 64558
Manufacturer's User Notes and Installation Guide
Download Printable Specifications Sheet

Included Equipment

  • 625XNS CNC Spindle
  • High Flow Filter / Regulator / Extractor
  • ER11 UP Collet System (1/4" or 6 mm)
  • Collet Wrenches
  • Air Hose
  • Fittings
  • Plug
  • Coolant Guard
  • Carrying Case

Standard Equipment

ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
625XNS Specifications
Speed 30ˌ000 RPM 40ˌ000 RPM 50ˌ000 RPM
Power 0.72 HP (0.54 kW) 0.74 HP (0.55 kW) 0.76 HP (0.57 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 16 CFM (7.55 L/s) 20 CFM (9.44 L/s)
Air Consumption Working Flow 22 CFM - 30 CFM
(10.38 L/s - 14.16 L/s)
Air Hoses and Fittings Minimum Size 8 mm internal diameter
Sound Level Less Than 78 dBA
Max Shank Capacity ER11 UP - 1/4" (6 mm)
