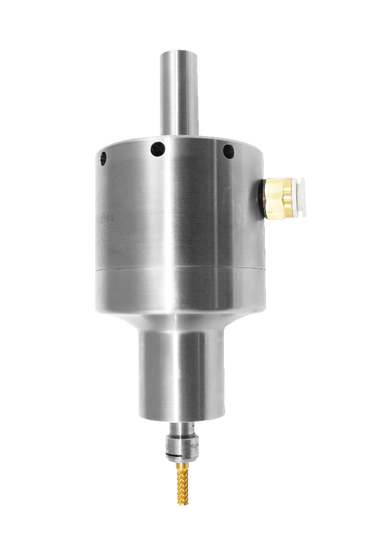

650JS
the tools of a new generation™
The 650JS is a workhorse with up to 0.88 HP (0.66 kW) at 25,000, 30,000 or 40,000 RPM. In 24 hour operation the patented governed high speed 650JS delivers constant high speed and torque under load with high reliability and accuracy because of its low friction power unit with few moving parts.
Plenty of power to speed up your inches cut per minute. High cutting speeds are maintained at the periphery of your end mill or bur using the the 650s unique governed performance to achieve a faster cycle time, a cleaner finished surface and more production on your CNC. Longer endmill life results from faster cutting with a light pass and no gears, vanes or brushes to urn up means less down time and repair costs. Twin front ceramic bearings are standard on the 650 series enhancing reliability. No duty cycle.
Included Equipment
Standard Equipment
650JS Specifications | |||
---|---|---|---|
Speed | 25ˌ000 RPM | 30ˌ000 RPM | 40ˌ000 RPM |
Power | 0.8 HP (0.6 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
Air Consumption Idle | 13 CFM (6.14 L/s) | 18 CFM (8.49 L/s) | |
Air Consumption Working Flow |
14 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
Sound Level | Less Than 78 dBA | ||
Max Shank Capacity | ER11 UP - 1/4" (6 mm) |
