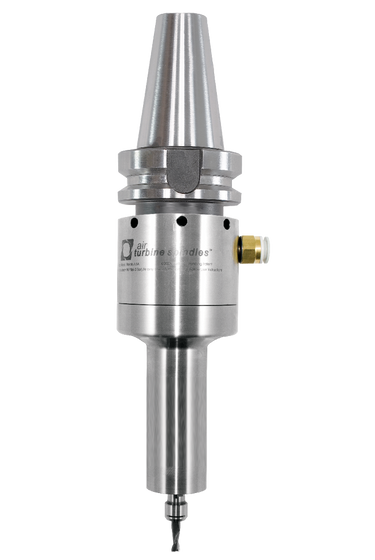

650LBT40 (100 mm)
650LBT40 (100 mm)

650LBT40 (100 mm)

$6,500.00
the tools of a new generation™

The powerful 650LBT40 has the 100 mm extended reach for deep pockets, robotic face or edge milling, or furnishing operations up to 0.88 HP (0.66 kW) at 25,000, 30,000 or 40,000 RPM. This 650 unit delivers patented constant governed high speed operation under load. Cutting faster and cleaner - speeding up cycle times and achieving major savings.

Fewer moving parts means less vibration and less repairs. There are no gears or vanes to lubricate or burn up and the ceramic grease packed bearings are durable. Totally oil free operation eliminates work piece contamination and oil lubrication using 90 psi (6.2 bar) dry clean oil free air.

Automatically Load and Unload

Automatic loading available using through spindle air supply with the patented collar and block TMA assembly, or tool change without the TMA on certain machines that have an air blast line or coolant channel supplying a sufficient air flow volume.

This order will be ready to ship in approximately 5-7 business days.
Collet Capacity
Speed
Air Turbine Spindles Inc.SKU: 64924

Included Equipment

  • 650LBT40 (100 mm) CNC Spindle
  • High Flow Filter / Regulator / Extractor
  • ER11 UP Collet System (1/4" or 6 mm)
  • Collet Wrenches
  • Air Hose
  • Fittings
  • Plug
  • Coolant Guard
  • Carrying Case

Standard Equipment

ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
650LBT40 (100 mm) Specifications
Speed 25ˌ000 RPM 30ˌ000 RPM 40ˌ000 RPM
Power 0.8 HP (0.6 kW) 0.83 HP (0.62 kW) 0.88 HP (0.66 kW)
Inlet Air Pressure 90 psi (6.2 bar) clean dry air
Air Consumption Idle 13 CFM (6.14 L/s) 18 CFM (8.49 L/s)
Air Consumption Working Flow 14 CFM - 35 CFM
(6.61 L/s - 16.52 L/s)
Air Hoses and Fittings Minimum Size 8 mm internal diameter
Sound Level Less Than 78 dBA
Max Shank Capacity ER11 UP - 1/4" (6 mm)
Tool Changer Mounting Assembly - 650, 650X & 660 Series
Tool Changer Mounting Assembly - 650, 650X & 660 Series

Tool Changer Mounting Assembly - 650, 650X & 660 Series

$1,500.00

Automatically load the 650 and 660 series of Air Turbine Spindles® in your CNC machine with the patented wrap-around Tool Changer Mounting Assembly (TMA). The TMA block remains on the CNC spindle for normal tool changes, and does not interfere with the main spindle. This collar system allows CNC tool changers to automatically load/unload your Air Turbine Spindle®.

Drilling of mounting block holes required for universal blocks.
Machine Block
Taper
Certain newer Haas machines have the mounting screw holes further apart than other Haas machines. If purchasing a Haas machine block, please measure the width between the screw holes and determine if the space is more than two inches or fewer than two inches to ensure the block is compatible with your machine.
The Tool Changer Mounting Assembly is a factory installation

When purchasing a TMA for an already-owned spindle you must send your current spindle to us for the TMA to be installed.
