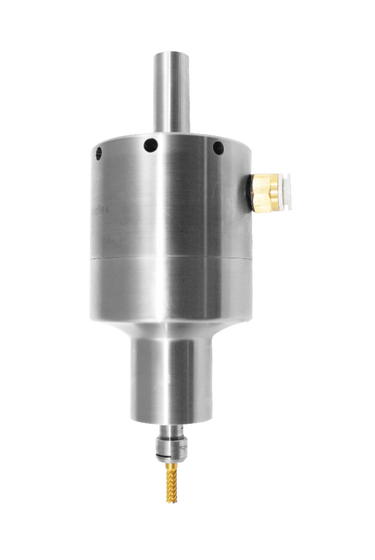

650XJS
$6,450.00
/
the tools of a new generation™
The 650XJS is a workhorse with up to 1.4 HP (1.04 kW) at 25,000, 30,000 or 40,000 RPM. In 24 hour operation the patented governed high speed 650XJS delivers constant high speed and torque under load with high reliability and accuracy as a result of its low friction power unit with few moving parts.
Plenty of power to speed up your inches cut per minute. The high cutting speeds are maintained at the periphery of your end mill or bur using the the 650Xs unique governed performance to achieve a faster cycle time, a cleaner finished surface and more production on your CNC.
Achieve a longer endmill life from the faster cutting with light passes. With no vanes, gears, or brushes to burn up there is no duty cycle and less repair costs.
,
This order will be ready to ship in approximately 5-7 business days.
Air Turbine Spindles Inc.SKU: 63040
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
650XJS Specifications | |||
---|---|---|---|
Speed | 25ˌ000 RPM | 30ˌ000 RPM | 40ˌ000 RPM |
Power | 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
Air Consumption Idle | 14 CFM (6.61 L/s) | 20 CFM (9.44 L/s) | 23 CFM (10.85 L/s) |
Air Consumption Working Flow |
19 CFM - 40 CFM (6.61 L/s - 16.52 L/s) |
||
Air Hoses and Fittings Minimum Size | 10 mm internal diameter | ||
Sound Level | Less Than 78 dBA | ||
Max Shank Capacity | ER11 UP - 1/4" (6 mm) |
