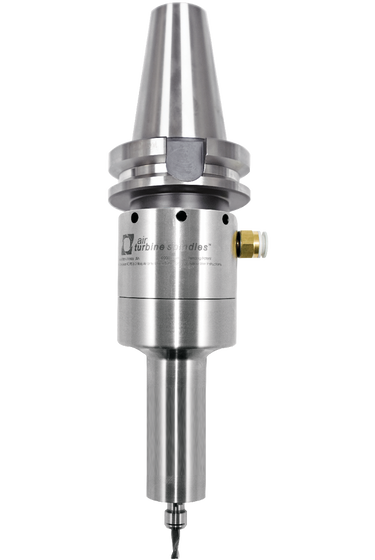

650XLBT50 (100 mm)
the tools of a new generation™
The powerful 650XLBT50 (100 mm) with the reach for deep pockets, robotic face or edge milling, or furnishing operations up to 1.4 HP (1.04 kW) at speeds of 25,000, 30,000 or 40,000 RPM.
This Air Turbine Spindles® 650X unit delivers patented constant governed high speed operation under load cuts faster and cleaner - speeding up cycle times and achieving major savings.
Fewer moving parts means less vibration and less repairs. There are no gears or vanes to lubricate or burn up and the ceramic grease packed bearings are durable. Totally oil free operation eliminates work piece contamination and oil lubrication. Operates on 90 psi (6.2 bar) dry clean oil free air.
Automatically Load and Unload
Automatic loading available using through spindle air supply with the patented collar and block TMA assembly, or tool change without the TMA on certain machines that have an air blast line or coolant channel supplying a sufficient air flow volume.
Included Equipment
Standard Equipment
650XLBT50 (100 mm) Specifications | |||
---|---|---|---|
Speed | 25ˌ000 RPM | 30ˌ000 RPM | 40ˌ000 RPM |
Power | 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
Air Consumption Idle | 14 CFM (6.61 L/s) | 20 CFM (9.44 L/s) | 23 CFM (10.85 L/s) |
Air Consumption Working Flow |
19 CFM - 40 CFM (8.97 L/s - 18.89 L/s) |
||
Air Hoses and Fittings Minimum Size | 10 mm internal diameter | ||
Sound Level | Less Than 78 dBA | ||
Max Shank Capacity | ER11 UP - 1/4" (6 mm) |
Tool Changer Mounting Assembly - 650, 650X & 660 Series
Automatically load the 650 and 660 series of Air Turbine Spindles® in your CNC machine with the patented wrap-around Tool Changer Mounting Assembly (TMA). The TMA block remains on the CNC spindle for normal tool changes, and does not interfere with the main spindle. This collar system allows CNC tool changers to automatically load/unload your Air Turbine Spindle®.
Drilling of mounting block holes required for universal blocks.
The Tool Changer Mounting Assembly is a factory installation
When purchasing a TMA for an already-owned spindle you must send your current spindle to us for the TMA to be installed.
