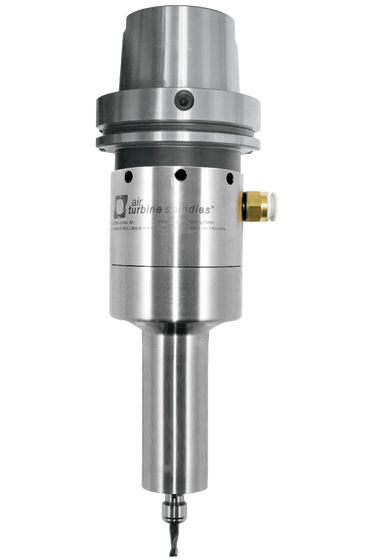

650XLHSK-A100 (100 mm)
the tools of a new generation™
The powerful 650XLHSK-A100 (100 mm) with the reach for deep pockets, robotic face or edge milling, or furnishing operations up to 1.4 HP (1.04 kW) at speeds of 25,000, 30,000 or 40,000 RPM.
This Air Turbine Spindles® 650X unit delivers patented constant governed high speed operation under load cuts faster and cleaner - speeding up cycle times and achieving major savings.
Fewer moving parts means less vibration and less repairs. There are no gears or vanes to lubricate or burn up and the ceramic grease packed bearings are durable. Totally oil free operation eliminates work piece contamination and oil lubrication. Operates on 90 psi (6.2 bar) dry clean oil free air.
Automatically Load and Unload
All Air Turbine 650XL HSK spindles can tool change automatically if the machine's air supply line has a minimum of 10 mm internal diameter through center air feed.
Included Equipment
Standard Equipment
| 650XLHSK-A100 (100 mm) Specifications | |||
|---|---|---|---|
| Speed | 25ˌ000 RPM | 30ˌ000 RPM | 40ˌ000 RPM |
| Power | 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | ||
| Air Consumption Idle | 14 CFM (6.61 L/s) | 20 CFM (9.44 L/s) | 23 CFM (10.85 L/s) |
| Air Consumption Working Flow |
19 CFM - 40 CFM (8.97 L/s - 18.89 L/s) |
||
| Air Hoses and Fittings Minimum Size | 10 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4" (6 mm) | ||
CNC Spindle Accessories
Shop Now
All Air Turbine Tools® products are made to order, and ship on average within 5-7 business days after your order is received.
