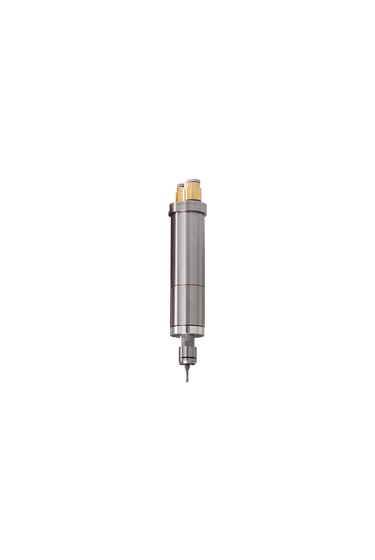

822CX
$3,250.00
/
Get 5 x faster production with this mini motor from Air Turbine Live Tools®. The 822CX Series operates 24/7 accelerating your production. Easily install it in your sliding headstock lathe with its Ø 22 mm OD. This patented motor increases airflow to match cutting load maintaining your rated speed in cut.
Air Turbine Live Tools® are low friction direct drives with only 2 moving parts resulting in no heat and great reliability.
This order will be ready to ship in approximately 5-7 business days.
Air Turbine Motors Inc.SKU: 80008
Included Equipment
Standard Equipment
ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| 822CX Specifications | ||
|---|---|---|
| Speed | 60ˌ000 RPM | 80ˌ000 RPM |
| Power | 0.15 HP (0.11 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | |
| Air Consumption Idle | 3.5 CFM (1.65 L/s) | |
| Air Consumption Working Flow |
5 CFM (2.36 L/s) |
|
| Air Hoses and Fittings Minimum Size | 4 mm internal diameter | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER8 UP - 1/8" (3 mm) | |
