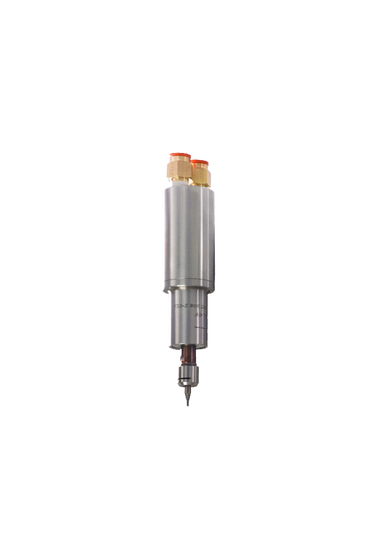

822MX
$3,250.00
/
At 65,000 RPM the 822MX keeps high speed under load. This compact low vibration live tool spindle operates 24/7 with low heat and has just 2 moving parts and no gears, vanes, or high frequency brushes to burn up.
Drop in the 822MX to accelerate your production and increase your productivity. Ideal for lathes, swiss automatics, robotics and finishing with micro tools. No control system or maintenance.
Mountable area of Ø 22 mm OD by 50.55 mm. Completely sealed with hose exhausts.
This order will be ready to ship in approximately 5-7 business days.
Air Turbine Motors Inc.SKU: 70162
Included Equipment
Standard Equipment
ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| 822MX Specifications | ||
|---|---|---|
| Speed | 50ˌ000 RPM | 65ˌ000 RPM |
| Power | 0.2 HP (0.15 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) clean dry air | |
| Air Consumption Idle | 4 CFM (1.89 L/s) | |
| Air Consumption Working Flow |
6 CFM - 9 CFM (2.83 L/s - 4.24 L/s) |
|
| Air Hoses and Fittings Minimum Size | 5 mm internal diameter | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER8 UP - 1/8" (3 mm) | |
